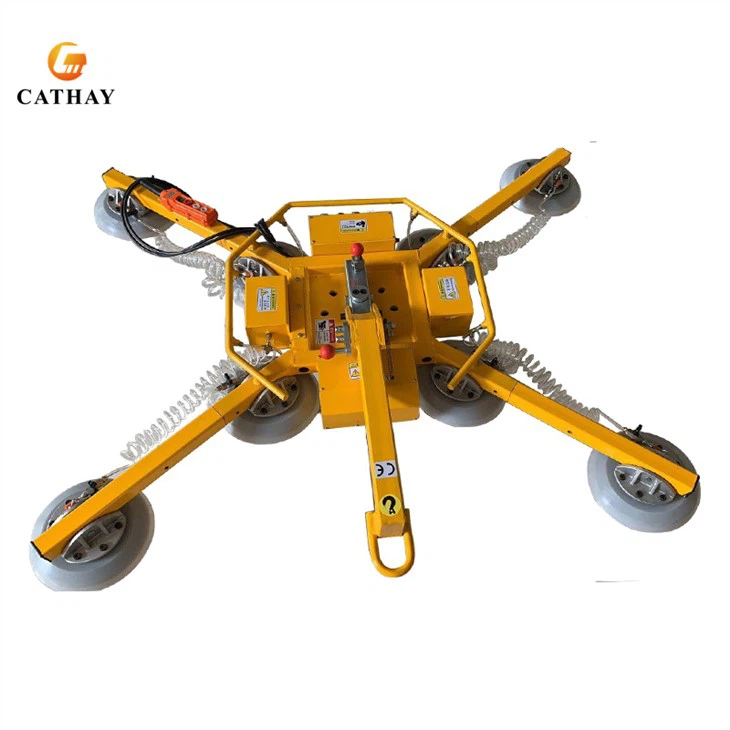

Vacuum Cups For Glass

XC series Vacuum Suction Cups are mainly used for glass installation. It is a portable device. The design of the battery makes it more convenient for you to work outdoors without needing an additional external power supply. The horizontal rotation of 360° and side flipping of 90° provide a good solution when dealing with complex work. Because of its economical price and wide range of uses, it is one of our best-selling products.

जांच भेजें

अब बात करो

विवरण

400kg~1200kg Vacuum Cups For Glass

Cathaylift Vacuum Cups According to the size and shape of different plates, you can combine the number of suction cups and the installation positions of the suction cups to meet various work needs. This design greatly improves the working range of the product. And all models of products adopt the design of double air pipes, equipped with pressure gauge indicators, and stable constant pressure devices to ensure that there will be no danger in the work.

Vacuum glass suction caps-Shandong Cathay Machinery Co Ltd 2

Model		XC-S400	XC-S600	XC-S800	XC-S1000	XC-S1200
Lifting Capacity	kg	400	600	800	1000	1200
Cup Qty	/	4	6	8	10	12
Single Cup Diameter	mm	300	300	300	300	300
Single Cup Capacity	kg	100	100	100	100	100
Rotation	/	360°manual rotate
Tilting	/	90° manual
Voltage	V	DC12
Charger	V	AC220/110 custom
Weight	kg	70	90	100	120	120
Sucker Frame Size	mm	850750300	1800900300	17601460300	19001600300	19001600300
Extension Bar Length	mm	500
Control System	/	Integrated Control Cabinet and Wired Remote Control
Overall Size	mm	1230910390mm, packed by wooden box
Gross Weight	kg	97	110	123	150	163
